GX-E-5K2 PCP Air Compressor, 5800psi

GX-E-5K2 PCP Air Compressor, 5800psi

If you are frequently filling 6.8L tanks from empty, or even topping it up, this is what I recommend.

This compressor is designed for to be powered from a 110v power outlet with a circuit breaker capable of supporting the 1500 watts that it draws. i.e 220v outlet is not required.

Yes, most clients will call this "expensive", but if you fill  1.6L air bottles or larger, don't make the mistake, like I did, and buy a sub $500 compressor only to find that it would not timely fill even a 1.6L bottle, so then you buy a $1000 compressor and same result, will not fill a 1.6L bottle or larger bottle in a timely manner or even AT ALL !  Then I finally bought this behemoth, which did the job filling my 6.8 L air cylinder, quietly and quickly.

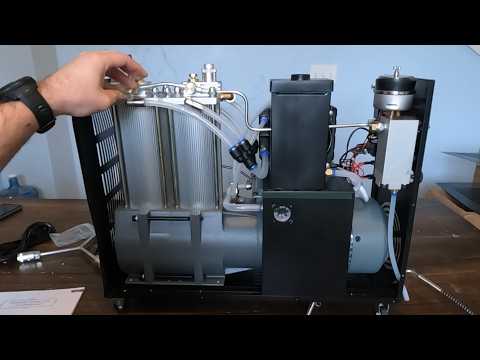

Down below, you'll find not only images of this behemoth, but an excellent video that shows you everything you need to know before buying and even after buying this behemoth. I strongly recommend that you watch this video before you order this. If you do order it, it's likely that you should have somebody on hand to help you uncrate it and help you bring it to where you are going use it because it's a behemoth and very heavy, and I certainly couldn't do it myself.  Thank goodness it has nice castering wheels.

• 2 Pistons & 4 Stages Powerful Compression: Designed by GX pump brand, this pcp air compressor utilizes a dual piston and 4 stages compression technology to reduce the fill time. With the powerful motor, you can fill to max 40mpa/5800psi pressure easily. Typically, for a PCP gun directly, it takes just 2-3 minutes. Also with the 1200W max power, you can fill almost all sizes of large PCP /Paintball/ Scuba tanks in the market, even over 20L. Please note: The filling of SCUBA breathing air use is not certificated or recommended.. I suggest a  6K burst disc if fill over 5000psi.
• Water + Fan Cooling System : The cooling system has a sufficient water capacity combined with a built-in water pump radiator and powerful cooling fan. There is a remaining water indicator on a side and you just need to open the water tank cap to add waterare even better, automotive coolant.. Notice: it arrives with a drained water tank for transport, before start compressor, you have to add 500ml automotive coolant into water tank first , to avoid destructive damage to this compressor.

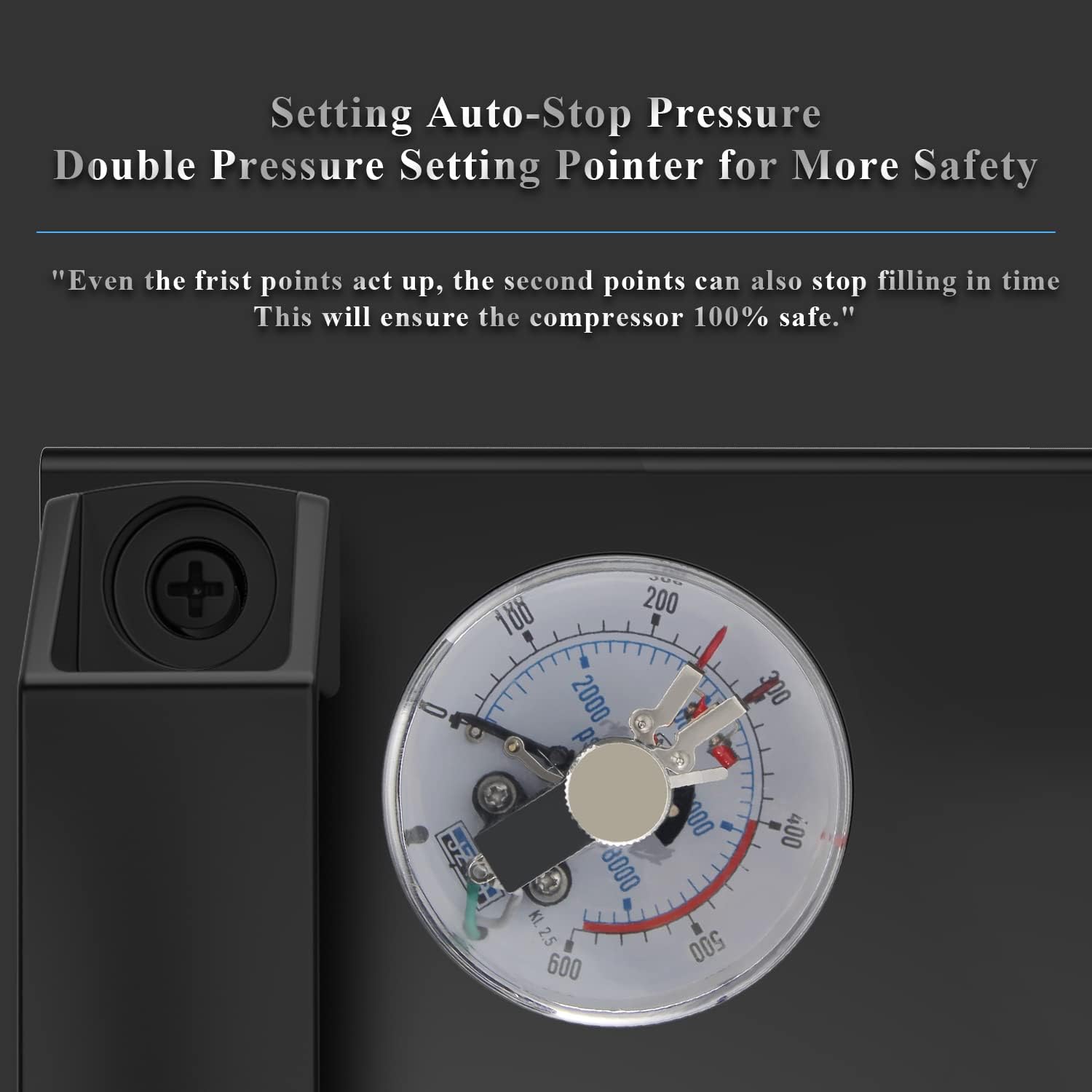

• Two Stages Auto-Stop Setting and Moisture Filter: The automatic shut off is easily set by the twin indicator arms in the extra large easy to read pressure gauge. When the desired pressure is reached the compressor shuts itself off automatically. I recommend monitoring the filling process.  The compressor will bleed off moisture when filling is complete. I still recommend that you purchase a heavy duty oil/water separator/filter as shown in the images, available in the accessories section of this web site. This filter should be used between the compressor itself and the bottle or PCP gun that you are filling.  I always do as much as I can to avoid water/moisture damage to my PCPs and air bottles. "An ounce of prevention is worth a pound of cure".
• Super Fast Filling Speed: Filling 6.8L PCP/SCUBA tank, just needs 45 minutes from 0-4500psi. 0.5L from 1000psi- 4500psi, just needs 2.5 minutes. 0.5L from 1000-3000 psi, needs only 1.6 minutes. 1L from 1000psi-4500psi, takes 5minutes. 1L from 1000psi to 3000Psi, needs only 3.5 minutes.
• New Grease Injection System: Please note the grease tank has been added from the factory.  After the included grease is consumed, I suggest that you buy Food Grade E.P. Grease. Notice: Never turn the grease knob for the first 50 hours of use as it will cause too much grease in the machine.  The compressor has a built-in hour meter.  After 50 hou of use, turn the grease knob 2/3 turn.

While I usually have one of these on hand, they are usually dropped-shipped from my warehouse. Shipping to the CONUS via ground is free.  No sales tax is charged when shipping outside of the State of Connecticut.

105 Pounds

Dimension's
