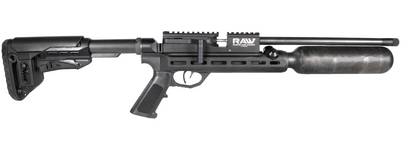

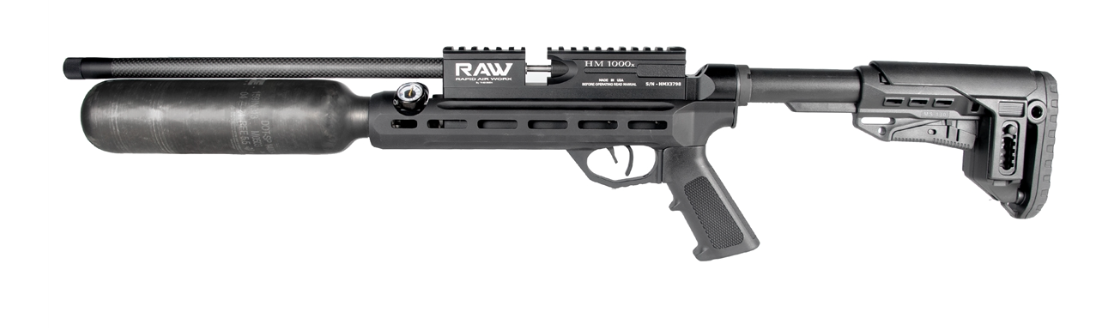

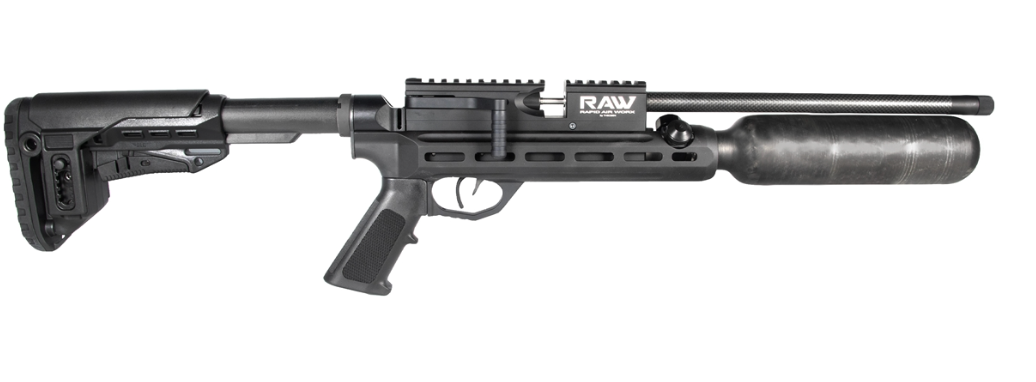

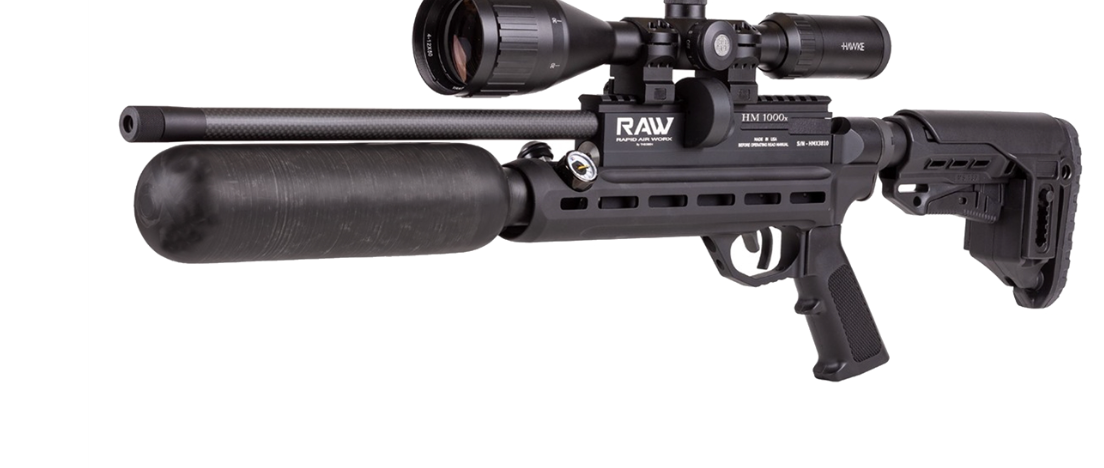

RAW (Micro Air Worx) Mini Chassis Rifle HM100)X, Available in .22, .25 and .30 Calibers

RAW (Micro Air Worx) Mini Chassis Rifle, Available in .22, .25 and .30 Calibers

The RAW HM1000x Mini Hunter Chassis Version delivers the same exceptional precision, reliability, and power as the full-size HM1000x, but in a lighter, more compact design. Proudly made in the USA, this high-performance air rifle is built for shooters who demand versatility without sacrificing accuracy. Whether you’re looking for a powerful truck-gun or a maneuverable hunting companion, the Mini Hunter fits the role.

Despite its reduced size, the Mini Hunter is capable of producing up to 60 foot-pounds of energy in .30 caliber, 50 foot-pounds in .25, and 40 foot-pounds in .22. A dual-ported barrel system maximizes efficiency, while the Lothar Walther polygonal rifled barrel ensures excellent accuracy. The rifle features a smooth, sidelever action and a fully adjustable two-stage match-grade trigger for a crisp, repeatable break.

Its precision-machined aircraft-grade aluminum chassis includes M-LOK accessory rails on the forend and a Picatinny optics rail on top, making it easy to mount your favorite scopes, bipods, or other accessories. The 500cc carbon fiber air tank fills to 250 BAR (3,624 PSI), offering a high shot count per fill—up to 60 shots in .22, 45 in .25, and 40 in .30.

With a carbon-fiber wrapped barrel and rugged construction throughout, the Mini Hunter is built for the field—but light enough to store and carry with ease. Whether you’re on the move or posted up for long-range precision shots, this rifle is ready.

Out of the box, the Mini side lever comes on the right hand side.  It can be switched over to the left-hand side. Personally, I was used to right hand side lever, and whenever I got a gun, they came with a left-hand side lever, I would ask the seller to switch it to the right hand side. Then I got a PCP that came with the left-hand side lever and I found that I actually preferred that! So make sure that you specify what side do you want the side lever on.

• AR-compatible A-B Arms grip and buttstock
• A-B Arms buttstock adjusts for length of pull and cheek weld
• Length of pull adjusts from 11.75" to 16"

• Male quick-connect fill fitting (Foster Fitting)

• 15" barrel, (381mm)

Key Features

• Barrel Length 15" (381mm)

• Up to 60 FPE in .30 caliber, 50 FPE in .25, and 40 FPE in .22

• Lothar Walther polygonal rifled barrel with dual ports for improved airflow

• Fully adjustable match-grade trigger with crisp break

• Precision-machined aluminum chassis with M-LOK accessory rails

• Picatinny optics rail for easy scope mounting

• 1/2-20 and 3/4-16 threaded barrel for moderators

• 500cc carbon fiber air bottle with 250 bar fill pressure

• Factory-tuned regulator for consistent shot strings

• Compact and maneuverable—ideal for hunting, range, or vehicle storage

• Made in Texas, USA

Velocity Ratings (Factory Tune):

• .22 Caliber: Up to 850 FPS

• .25 Caliber: Up to 820 FPS

• .30 Caliber: Up to 800 FPS

Approximate Shot Count per Fill:

• .22: ~60 shots

• .25: ~45 shots

• .30: ~40 shots
